CTP Platesetter

Mar. 06, 2025

Computer-to-Plate (CTP) platesetters are critical devices in modern printing workflows, allowing digital designs to be directly transferred onto printing plates without the need for intermediate film. This technology enhances efficiency, accuracy, and cost-effectiveness in prepress operations, serving industries ranging from commercial printing to packaging.

CTP (Computer-to-Plate) platesetters are advanced prepress devices that convert digital files directly into printing plates, eliminating the multi-step process of traditional film-based methods.

The CTP platesetter receives digital images (created in desktop publishing software) and directly exposes them onto the printing plate. This eliminates the intermediate film production step, streamlining the workflow and reducing the risk of image degradation.

CTP Platesetter Technical Specifications

CTP Platesetter Key Components

Imaging System:

• Uses laser (thermal, violet, or UV) or LED to etch images onto printing plates. Thermal laser is ideal for high-resolution applications, while violet laser offers faster speeds and compatibility with various plate types.
• Precision optical components guide the laser to expose the plate coating, forming a latent image.

Plate Handling Mechanism:

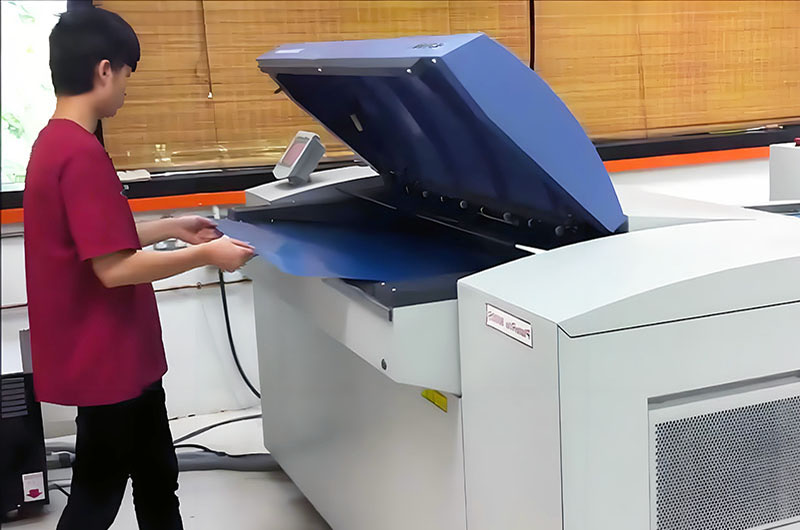

• Automated systems typically use mechanical arms or feeders to load/unload plates.
• Includes registration systems (such as pin bars or punch systems) to ensure proper alignment for multi-color printing.

Digital Front End (DFE):

• The Raster Image Processor (RIP) converts vector/raster files into bitmap data.
• Manages color separations (CMYK/spot colors), screening, and calibration to ensure color accuracy.

CTP Platesetter Workflow Integration

• Seamless integration with prepress software such as Adobe PDF, Esko, and Kodak Prinergy.
• Supports industry standards like CIP3/CIP4 for ink key presetting and job tracking.

CTP Platesetter Imaging Mechanism

CTP platesetters use various imaging technologies, including:

• Laser Diodes: The most common, providing precision and consistency by using a focused light beam to expose the plate.
• Thermal Imaging: In thermal CTP systems, infrared lasers generate heat, chemically altering the thermal coating on the plate.
• Inkjet Imaging: Some systems use inkjet technology to deposit specialized inks onto the plate surface.

Types of CTP Platesetters

• Internal Drum: The plate is fixed inside the drum; the laser head moves to achieve high-precision imaging (ideal for high-resolution jobs).
• External Drum: The plate is mounted on a rotating drum; the laser/imaging head fires during rotation (fast processing speed).
• Flatbed: The plate lies flat while the imaging head moves (suitable for thick plates or flexible plates).

CTP Platesetter Plate Materials and Imaging

Thermal Plates:

These plates use infrared laser imaging. They are valued for their high resolution and sharp detail. Thermal plates typically allow for long press runs and excellent process stability, making them the preferred choice for many commercial printing applications.

Photopolymer Plates:

Photopolymer plates are often used with violet laser technology, requiring lower energy exposure. Due to their fast imaging capabilities and cost-effectiveness, they are particularly popular in newspaper printing.

Silver Halide Plates:

These plates have different exposure requirements and can deliver high-quality prints with fine details, though they are less common in modern CTP setups.

Each type of plate requires specific wavelengths and laser energy for optimal exposure, contributing to the versatility of CTP systems across various printing needs.

Advantages of CTP Technology

• Cost Savings: Eliminates film expenses and reduces labor costs.
• Quality: Higher precision and repeatability with minimal dot gain.
• Speed: Faster turnaround from design to plate.

Applications of CTP Platesetters

CTP platesetters are an indispensable part of various printing industries – from high-volume newspaper production to commercial printing and packaging. They are suitable for both short-run jobs that require frequent changes and longer, more consistent print runs.

• Commercial Printing: Magazines, brochures.
• Packaging: Flexographic printing for labels/corrugated materials.
• Newspapers: High-speed daily production.

By combining digital precision with industrial efficiency, CTP platesetters have revolutionized the printing industry. Their adaptability to various plate types, automation capabilities, and eco-friendly innovations make them indispensable in modern printing environments, driving productivity and quality across multiple sectors.
